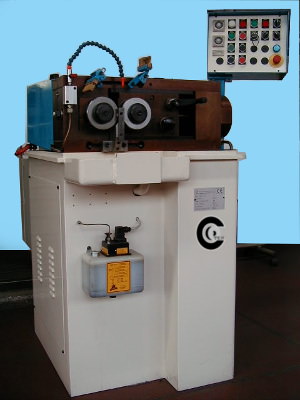

Small Thread rolling machine Magnaghi - type R802

thread rolling machines magnaghi 802 type

The 802 thread rolling machine is a hydraulic rolling machine equipped with 2 fixed roller-bearing spindles.
Manual or automatic operation controlled by PLC or CNC
The 802 rolling machine can be equipped with automatic piece loaders.
It has a max thrust power of 10 t.
Ideal for threading (iso, acme, tpn, etc.) small-diameter (2-8 mm) parts.
Max thread length 40 mm.

thread rolling pieces
Thread rolling machines Features R 802
- Hydraulic or mechanical operation
maximum force KN.80
Spindle diameter mm.40
Maximum thrufeed thread rolling length mm.60
Maximum dies diameter mm.100
Spindles rotation speed rpm /min. 40-70
Installed power KW. 1,5
Net weight Kg. 800
